Search






Card view

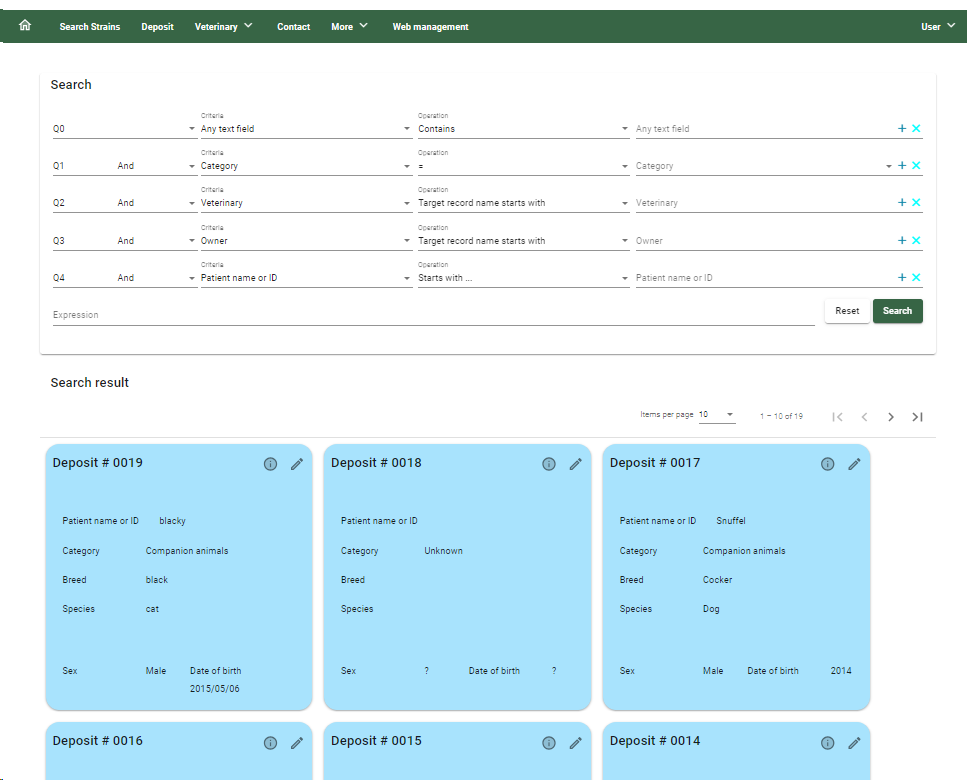

Results from a search can be displayed using a card view.

An example of a card view is shown in the picture below.





The designer section of the templates management will be opened when a new card view template is created or when one needs to be edited.


Items can be placed on the template. Hover the mouse on top of any of the numbers below to see detailed information.


Card view


Card view




All information for this page can be found above this line. Simply hover the mouse on top of any of the numbers to see the information. Top


1
1.

List of all fields in the selected table of selected database. Rights are respected.

See Field properties in card view.

2
2.

Available static items are: Separator and Static HTML.

3
3.

Default containers provided, to be dragged onto the form.

Available containers are:Horizontal splitter and Splitter

4

Template area

4. Template area
Area where the fields, static items, HTML blocks and containers can be dragged onto.

5

Search

5. Search

Search for a given field or item. Click on the X icon to display the full list of fields and items again.

Full size

This movie is based on a display template however the same applies to the card view template.

6

Save

6. Save

Save all changes made to the current template.

7

Preview

7. Preview

Go to the preview to see how the current form looks in the end.

Click on the close icon to go back to the designer window.

Full size

This movie is based on a display template however the same applies to the card view template.

8

User profile

8. User profile

Select from:

  • Back to site: Will open the actual website.

  • User profile: Place to update the details of the user. The look is managed by the curator of the website and is explain in sub chapter User profile.

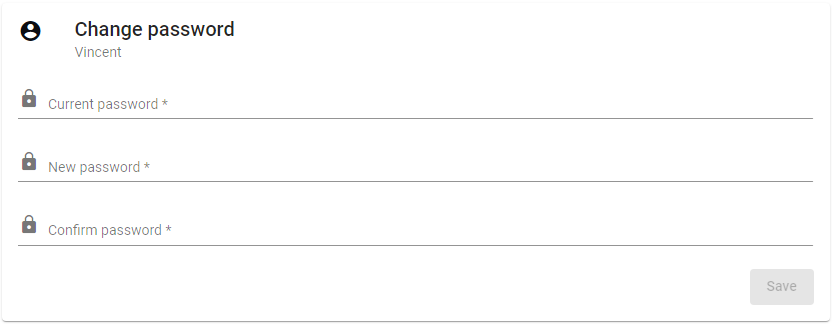

  • Change password: Allows the user to change the password by giving first the current password and then 2 times the new password.



  • Help: The BioloMICS manual will be opened.

  • About: Information about the application, web service and database version.

  • Logout: Log out from the website. The login screen will appear after logging out.

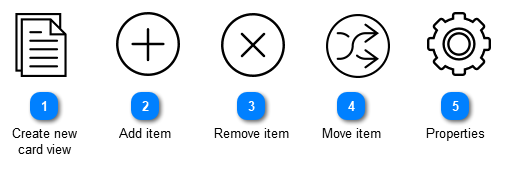

1

Create new

card view

1. Create new card view
To create a new card view template, go to the template management and click on Add new template.

Provide the requested information:

  • Select card view as the template type.
  • Enter a name for the new template.
  • Select the database.
  • Select the table in the database.
  • Add a description for this template (optional).

See Add item for the next step to take.

2

Add item

2. Add item
To add an item to the from template, take it from the left and drag it to the template area.

Full size

This movie is based on a display template however the same applies to the card view template.

3

Remove item

3. Remove item
To remove an item from the form template, hover the mouse on top of it and click on the bin icon.

Full size

This movie is based on a display template however the same applies to the card view template.

4

Move item

4. Move item

To move an item up or down, hover the mouse on top of it an click on the icons up or down.

Full size

This movie is based on a display template however the same applies to the card view template.

5

Properties

5. Properties
Click on a given item in the template area to see the properties panel on the right.

     Full size


  • Global options: Settings for the current template. For details see Global options Card view.


  • General options: Settings for each field type adapted (not available for all items).

  • General options for each field type, see Field properties in Card view.

  • General options for Containers.

  • There are no general options for Static items. See Static items for details on how to use them.


  • Field details: Metadata from the field: Field name, field code, field type, table name, database name, (target table and target database), and the creation date.

    Note that this tab is hidden when a static item or container is selected.






The contents of Card view

Field properties in Card view
Global options Card view
