Field properties in Card view


In the card view of the template management, fields in the selected table can be added.


  • Take one field from the left and drag it to the template area (add item).

  • Click on the field in the template area to see the properties on the right.

    The general properties of the field types differ but can be grouped based on the function of the field.

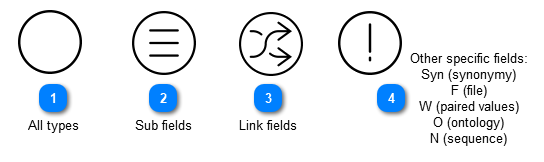

    Hover the mouse on top of the number or click on it to see the details for the given group of fields.


Field properties in Card view




1

All types

1. All types

Applicable to the following types: A, Alink, C, Clink, D, Dlink, E, Elink, F, Flink, H, Hlink, I, Ilink, K, Klink, L Link, M, Mlink, N, Nlink, O, Olink, R, S, Slink, Syn, SynLink, T, Tlink, U, V, Vlink, W, Wlink, Y and Record name.


  • Show field label: Show or hide label for the property, the default value is true.

  • Field label: Enter the title of the field.

    Typography

  • Use default typography: If not selected, the user will be able to changee font size of the field.


2

Sub fields

2. Sub fields

Applicable to the following types: A, Alink, C, Clink, M, Mlink.


  • Number of columns: Select the number of columns for the display of the values of the selected field (1, 2, or 3).

  • Subfields: Enter the name of the subfield and check the box if it should be displayed.


3

Link fields

3. Link fields

Applicable to the following types: Alink, Clink, Dlink, Elink, Flink, Hlink, Ilink, Klink, Llink, Mlink, Nlink, O, Olink, R, Slink, SynLink, Tlink, Vlink, Wlink.


  • Link type: Select the presentation for the linked values. Either chips or hyperlink.

  • Show record details: A boolean value to activate or deactivate the use of a template to show the details of target records.

  • Target display template: The template used to show the details of the records.

  • Use summary as title: If checked, the link name will be set to the summary field value, otherwise it will be the name field value.

  • Use read more link: If checked, a read more link will be shown if the linked values exceeds 10.




4

Other specific fields:

Syn (synonymy)

F (file)

W (paired values)

O (ontology)

N (sequence)

4. Other specific fields:
Syn (synonymy)
F (file)
W (paired values)
O (ontology)
N (sequence)

Applicable to the following types:Syn/Synlink, F.


  • Syn/Synlink (synonymy)

  • Use collapse panel: If checked, use collapsablepanel for synonyms and obligate synonyms.

  • Current name label: Label to be used for current name.

  • Taxon synonyms label: Label to be used for synonyms.

  • Basionym label: Label to be used for basionym.

  • Obligate synonyms label: Label to be used for obligate synonyms.

  • Use one record by row: If checked, each line is one record. Other wise the records will be displayed besides each other (on the same line).

  • F/Flink (files):

  • Display field as link: If checked, the field will be displayed as link.

  • Show field name: if checked, the user will be able to see the name of the file.

  • Click on image: If checked, the user will be able to click on the file and show details.

  • Target display template: The template used to show the details of the records.

  • Use summary as link title: If checked, the link name will be set to the summary field value, otherwise it will be the name field value.


  • W field (paired values):

  • Chart title: Title of the line chart.

  • X axis title: Title of the X axis.

  • Y axis title: Title of the Y axis.


  • O field (ontology):

  • Show child links: If checked, the child links will appear.

  • Show child links label: If checked, it will display the children label in the details.

  • Use read more link: If checked, a read more link will be shown if the linked values exceeds 10.


  • N field (sequence):

  • Show protein: If checked, the DNA to Protein section will be shown in a display template.
