FLink - Create a new FLink field




The example below shows how to create a new FLink field.

  • Open the Fields settings window and add a new field. For instructions see step 1 to 3 in Add new field to a table.

  • Provide the information in the wizard:
  • Field name Macroscopic pictures
  • Type FLink

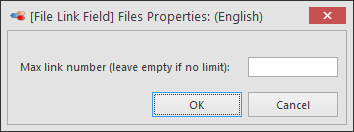

  • Advanced options*
  • Set the maximum number of linked records allowed for this field (optional).
    *for more information on the advanced options see FLink - Specific features.

  • In step 3 of the wizard select the target table: Files_ and the target field: File content
    Note that (for this example) there must be a table called Files_ with a field called File content in the database.

  • After completing the wizard, add the field to a table view to be able to see it in the tree.
