ELink - Import data in an ELink field




There are two different ways to import for a link field:
  • Create a link to an existing record in the target table.
  • Create a new record in the target table and make the link.


  • Open the Import window. For instructions see Data import.

  • For scenario A (create a link to an existing record in the target table) we need to have the name (or id) of the mother table and the name (or id) from the target table.

    Name
    Name field target table
    BIO 14
    20190115 Double check
    Note that in this example the target table (E table) should have a record called 20190115 Double check.

    When importing based on the name of the record, it is possible to import 2 links for 1 record.

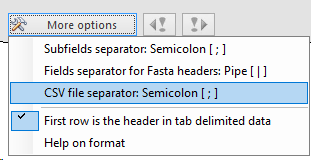

    Go to More options and select CSV file separator. Then use the separator that is selected in the import tool

    The default separator is Semicolon (;).
    Name
    Name field target table
    BIO 14
    20190115 Double check;20190115 WIP

  • For scenario B (Create a new record in the target table and make the link) we need to have the same as scenario A plus the path of the file (and other information if preferred).
    Name
    Name field target table
    Remarks (E field in target table)
    BIO 14
    20190115 WIP
    This work is still in progress.
    Note that in this example the target table (E table) should NOT have a record called 20190115 WIP.

    For practicing purposes, copy the following to clipboard:
    Name     Name field target table     Remarks
    BIO 14     20190115 WIP     This work is still in progress.

  • In BioloMICS in step 1 of the import wizard, click "Paste tabular data".

  • In step 2, check "Show target fields (max 1 level)" on the top-right to see all the fields of the target tables.

  • Link the fields to the corresponding field in the database.
    The Name should be connected to the Record name of the mother table.
    The Name field target table should be connected to the Record name of the target table (E table).
    The Remarks should be connected to the E field in the target table (E table).

  • In step 3, append or merge the data. For more information about merging data in an ELink field, click here.
