Align two sequences
-
To align two sequences, under Molecular Tools, in the Pairwise alignment group, click Align two sequences.
-
Paste the first sequences in the textbox for First sequence.
-
Use the Clear sequence button
to clear the sequence from unwanted characters. -
Use the Reverse-complement button
to reverse and complement the sequence. -
Paste the second sequence in the textbox for Second sequence.
-
Click on the small arrow button on the right of the Align button to activate the right algorithm and sequence type for this alignment.
-
Algorithm options
-
BioloMICS Alignment Algorithm
-
BioloMICS - Smith Waterman Full expansion with Smith Waterman
-
BioloMICS strict No expansion between identical blocks
-
Blast
-
Sequence type options: DNA sequence or Protein sequence.
-

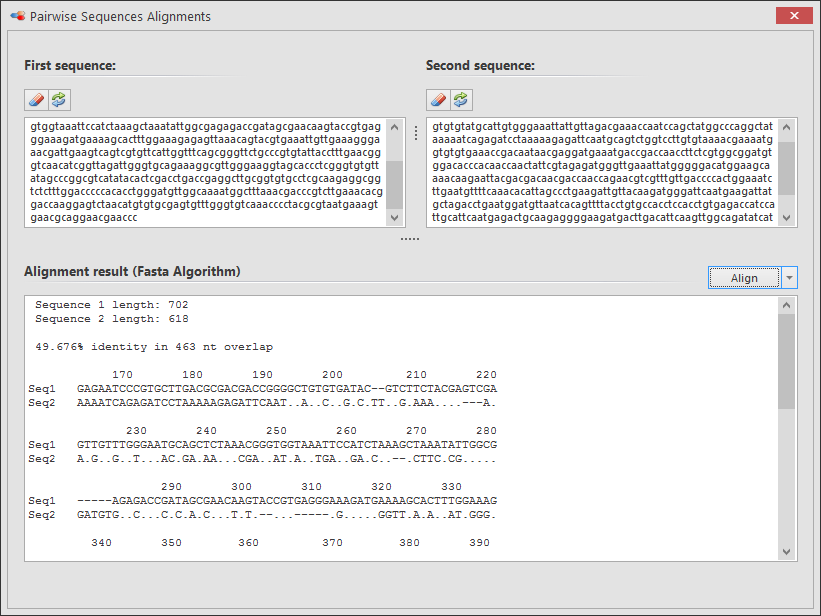

Click the Align button to start the alignment and to see the results in the textbox at the bottom of the window.
This movie shows how perform a pairwise sequence alignment in BioloMICS.
1. Molecular tools - Align two sequences (0:10)
2. Paste sequence 1 and 2 (0:17)
3. Revert and clean (0:27)
4. Select algorithm and type (0:34)
5. Align (0:41)
